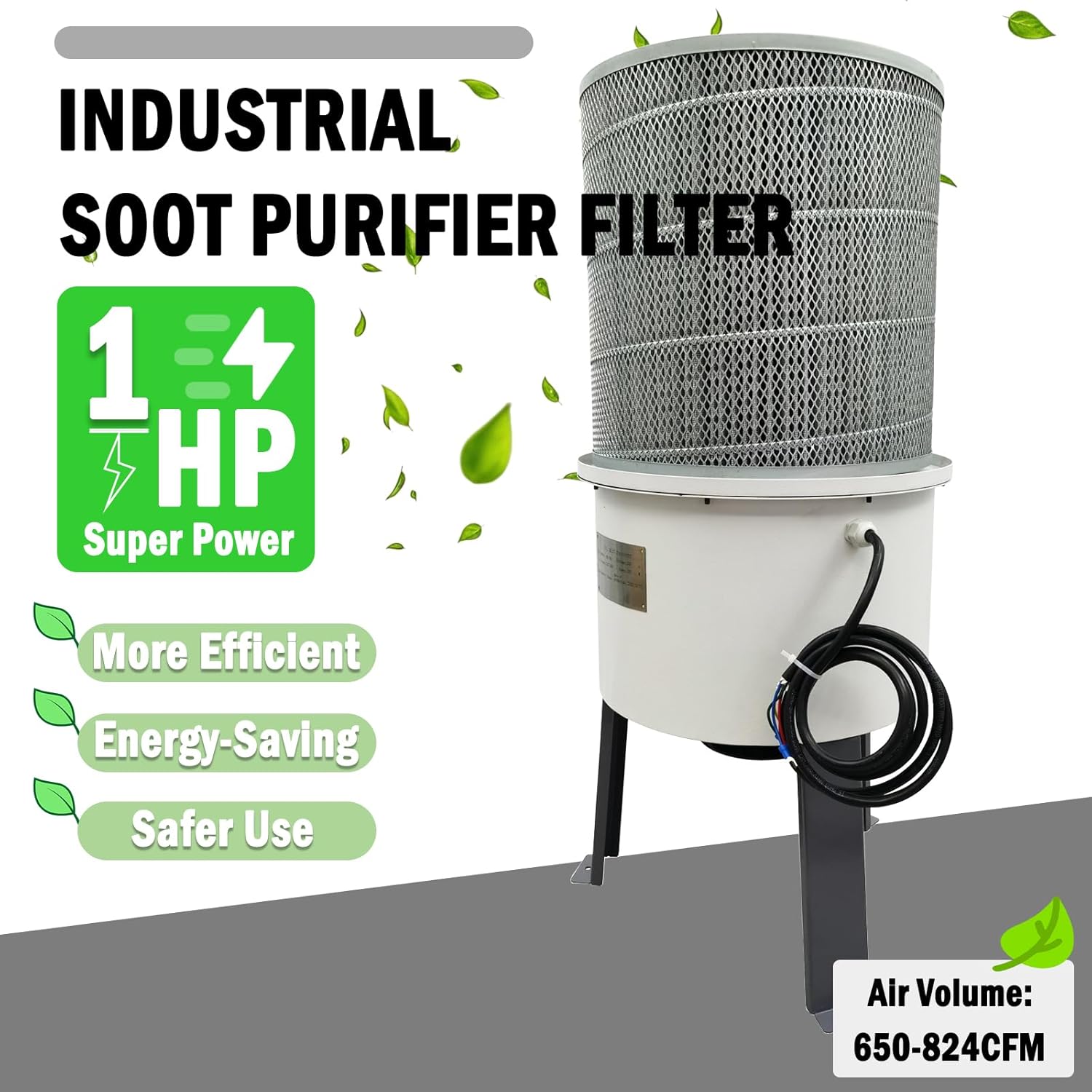

1HP CNC Machine Tool Processing Center Oil Mist Collector Industrial Soot Purifier Filter 650-824CFM Oil Mist Separator for CNC Lathe Cleaner 220V/3PH

Product Parameters: Model: HK-75B Voltage: 220V Three-phase Power: 1HP (750W) Air volume: 650-824CFM (1100-1400m³/h) Suction caliber: 4.3" (110mm) Noise value: 62-65dbA Applicable area: 2m³ Filtration efficiency: 99%; 0.2um or more Package size: PART1: 22.8"*15.7"*19" (58cm*40cm*48cm) PART2: 18"*17.8"*17" (46cm*45cm*43cm) Net weight/Gross weight: 48.5LBS(22kg) / 55.5LBS(25.2kg) Item included: Oil mist purifier *1

• Multi-layer Purification: Multi-layer high-performance filter cotton can intercept and capture the smallest particles, 650-824cfm large air volume and multiple filtration to ensure stable and efficient purification of workshop air
• 99% Filtration Efficiency: The filter demonstrates exceptional performance with a filtration accuracy of 0.2 microns for smoke. Effective adsorption of particles above 0.2um
• Turbine Design: The turbine design is engineered to effectively prevent particle deposition on its surface while ensuring that vibration issues are minimized, even in the presence of a large particle concentration
• Pure Copper Motor: The high-power motor made of pure copper material has excellent electrical conductivity, faster start-up, smoother operation, and can show good heat dissipation performance to ensure efficient purification ability
• Reasonable and Compact Structure: Compact in size, enabling significant space savings during installation; Suitable for mounting on the tops of various small machine tools
