3 in 1 Doweling Jig, Self Centering Guide Dowelling Kit Woodworking Hole Punching Locator with Drill Bushings & Bits Adjustable Wood Dowel Drill Locator Drilling Guide Power Tool

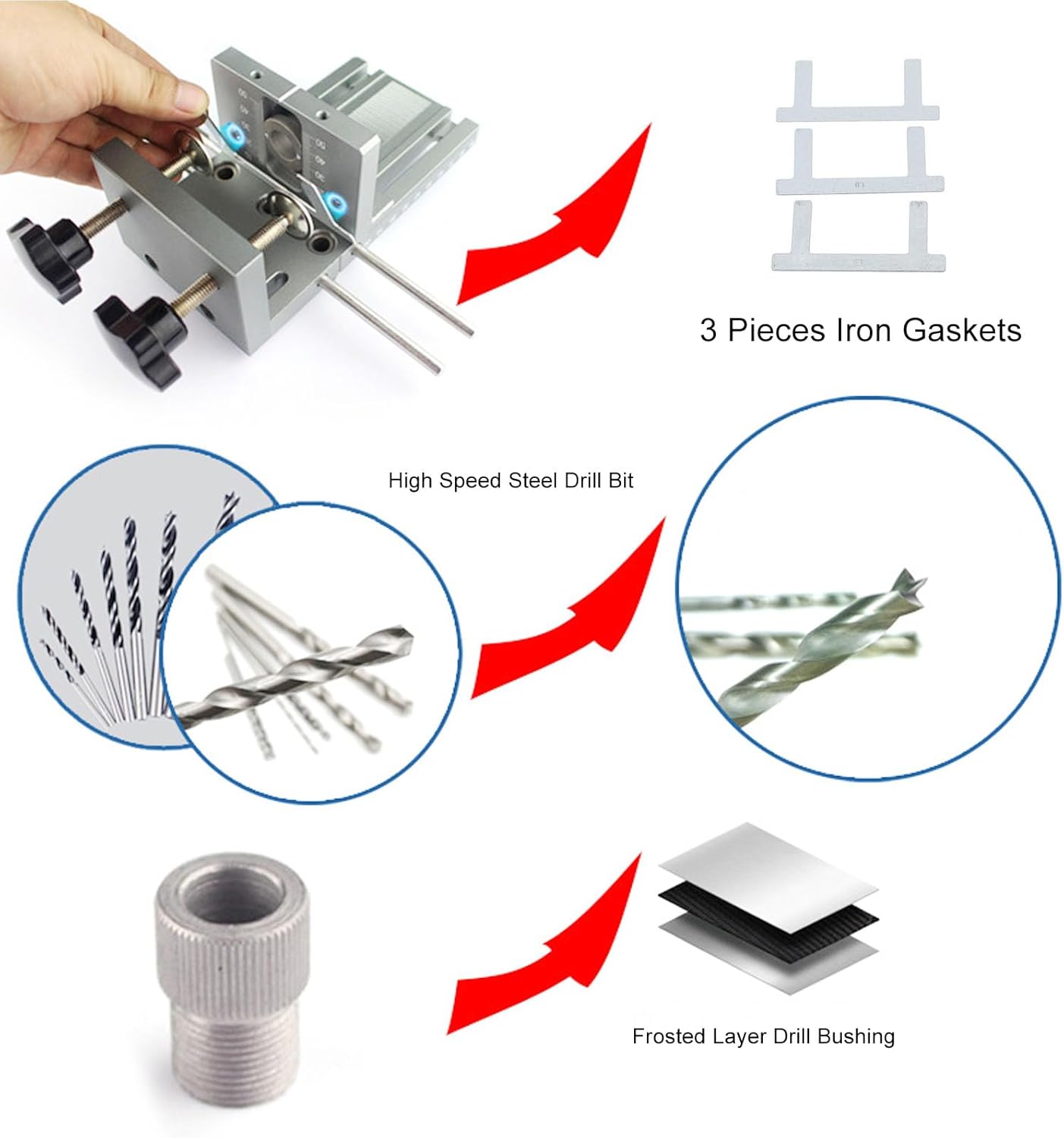

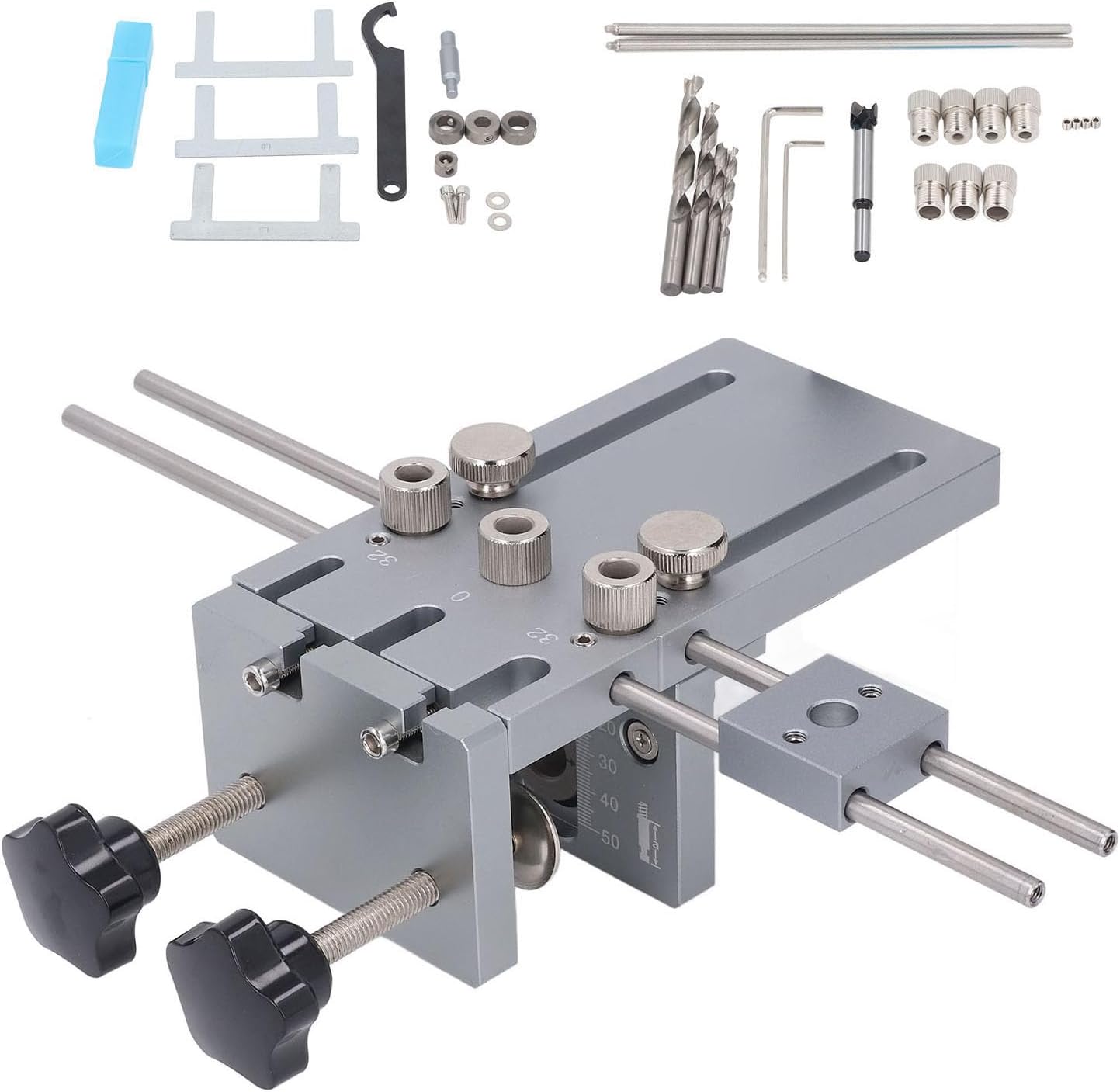

Spec: Item Type: Hole Punch Locator Material: 6061 Aluminum Alloy Processing Thickness: Approx. 10-180mm / 0.4-7.1in Side Hole Diameter: Approx. 15mm / 0.6in Straight Hole Diameter: Approx. 6mm / 0.24in, 8mm / 0.31in, 10mm / 0.39in Slider Stroke: Approx. 5-90mm / 0.2-3.5in Side Hole Stroke: Approx. 23-43mm / 0.9-1.7in Usage Range: Round Wood Dowel Hole Punch Locating How to Use: Directly install and use PackageList: 1 x Quick Release Clamp 1 x Main Board (Including 3Pcs 8mm Drill Bushings) 1 x Clamp Plate 4 x Extension Rods 1 x Slider Assembly 3 x Iron Washers 4 x Drill Bits 3 x 10mm Drill Bushings 3 x 6mm Drill Bushings 1 x 5mm Drill Bushings 1 x Hook Wrench 2 x Hex Wrenches 2 Packs Accessories 1 x Storage Box 1 x User Manual

• Quick Release Clamp: Woodworking dowel jig kit, providing quick release clamp to ensure stable and clamping and locating without the need for auxiliary board, greatly improving drilling efficiency
• Lengthened Design: Featuring 600mm lengthened locating detachable and combined design, greatly extending the locating distance between two sets of holes, suitable for more projects
• The self centering drilling guide and adjustable right angle tool can achieve accurate dowelling and maximum joint strength; During drilling, steel drill bushing ensures accurate alignment

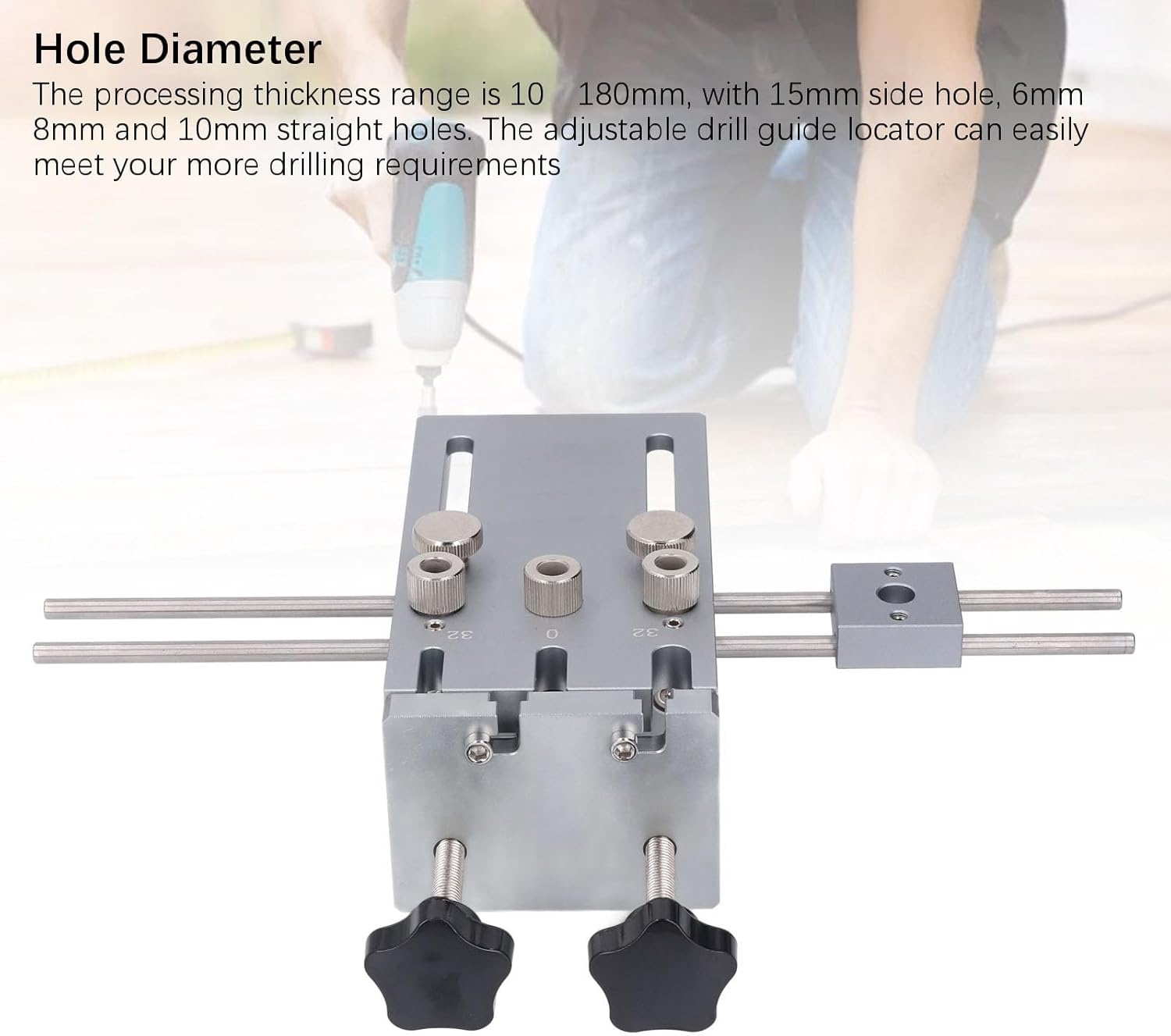

• Hole Diameter: The processing thickness range is 10‑180mm, with 15mm side hole, 6mm 8mm and 10mm straight holes. The adjustable drill guide locator can easily meet your more drilling requirements
• Wide Application: Suitable for edges, surfaces, T shaped joint, and L shaped joint projects, with accurate drilling, this dowel drill locator kit is ideal for home furniture installation and woodworking projects
