Morris Products 96108 Above Ground Insulation Piercing Connector, 1 Port, 4/0 - 3 Main Range, 2 - 10 Tap Range

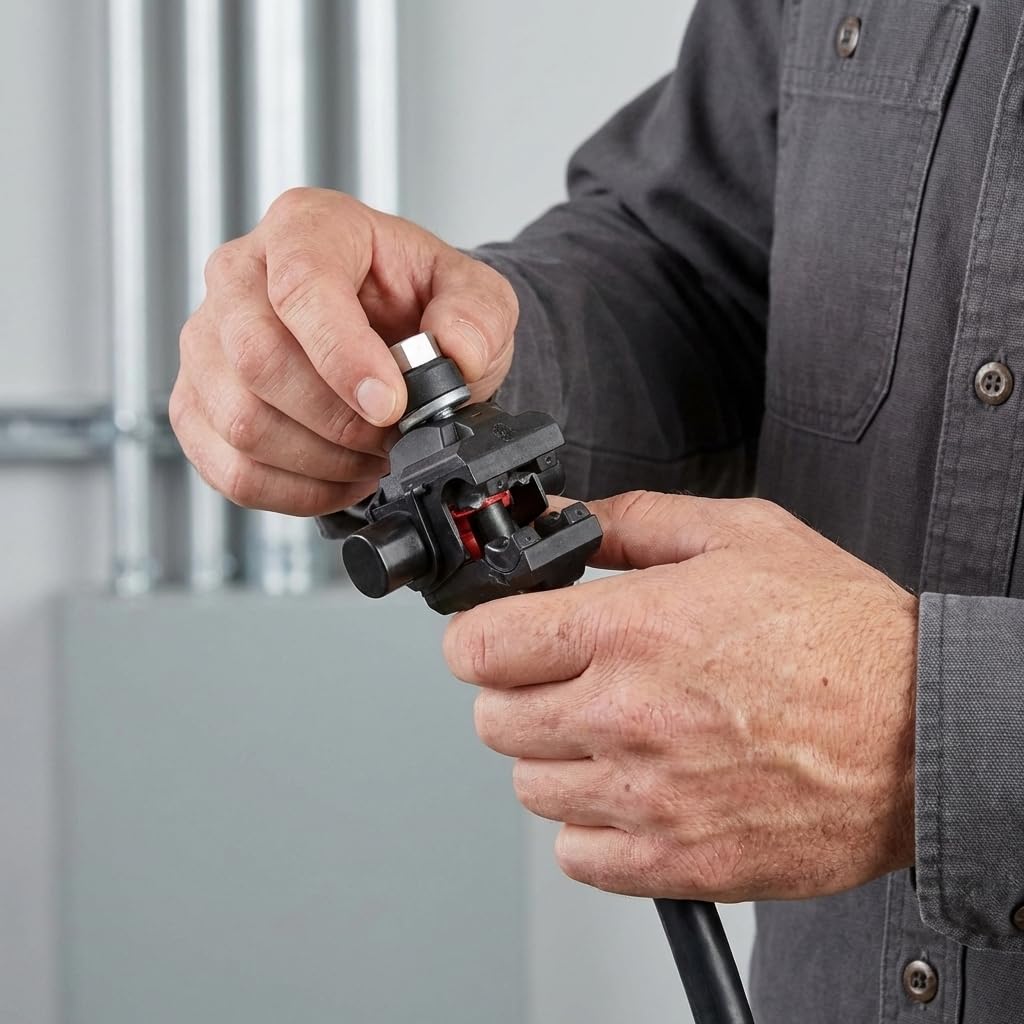

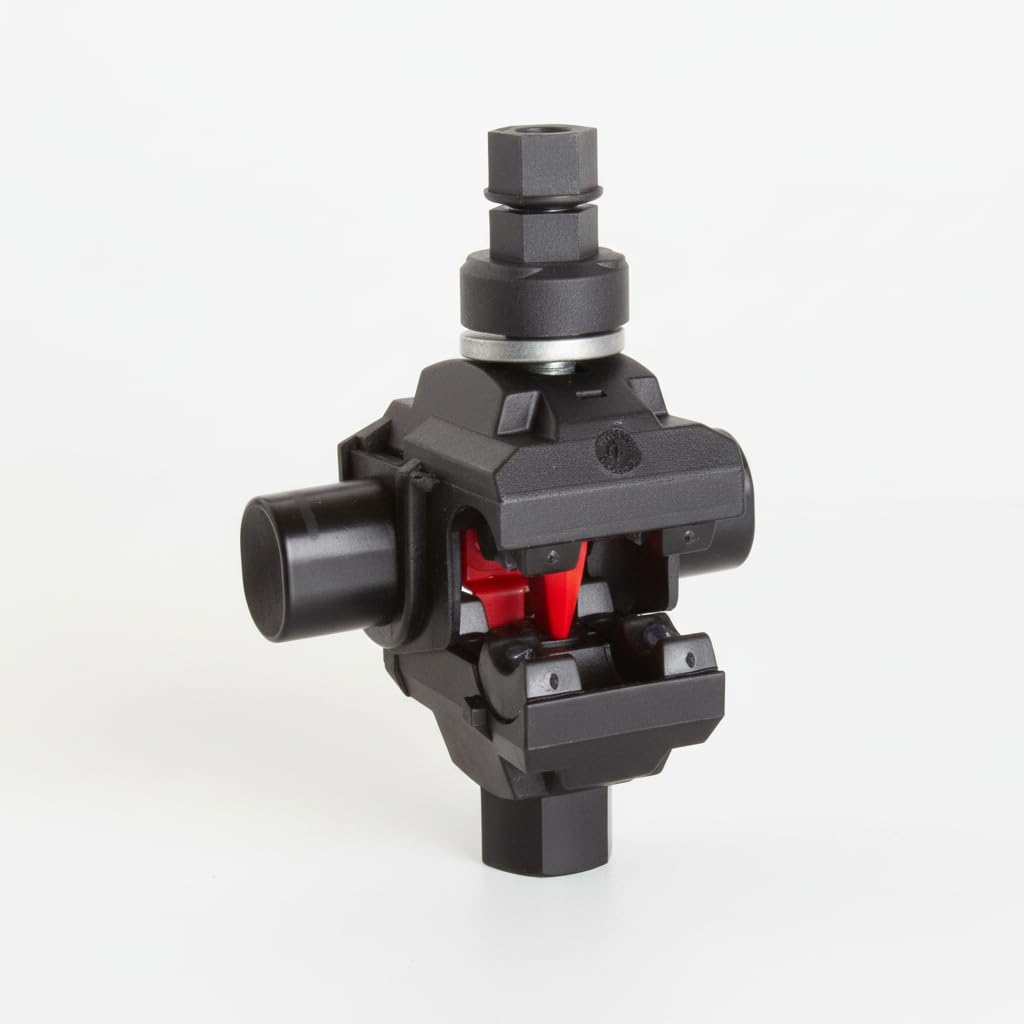

Double shear-head bolt guarantees correct torque tightening every time, ensuring a quality connection, & eliminating the possibility of hot spots, damaged wires or loose connections. No cable stripping required, simply insert the jacketed cable into the entry port & tighten with a 1/2” 6 point socket. Red Turbo spacer allows tap side to remain open while you hand tighten the above ground connector on the main wire (all models except 96102 & 96104). Blue Rubber Insert recreates insulation when used on bare wire. Used to avoid any damage on neutral messenger. (Only on Models 96106, 96110, 96112, 96114). The bolt and all external parts of the connector are completely isolated from energized parts and the bolt is covered by the plastic shear-head. The installer has no contact at any point with an energized part. Can be installed on energized conductors, however, the tap must not be under load. Corrosion-free connection is good for hot, cold, damp, & salty connections. Properly installed the connector seals water-tight. This is accomplished by a sealant tank, that during installation is compressed and forces sealant out to protect the connection from oxygen and water. Copper teeth are tin plated, shell is high strength UV resistant thermoplastic insulating material, steel bolts are galvanized. The connector bodies are made from high-strength fiber-reinforced thermoplastic and galvanized steel bolts. UL486B Listed for cu to cu, al to al, & cu to al; 600 Volt, 194°F (90°C) Rated, Meets ANSI C119.4 requirements. Model #'s: 96102 (TTD0510F), 96104 (TTD0810F), 96106 (TTD1010FBTUNI), 96108 (TTD1510FT), 96110 (TTD1810XFBTUNI), 96112 (TTD2110FBTUNI), 96114 (TTD2710FBTUNI), 96116 (TTD4010FBT), 96118 (TTD4310FBT), 96120 (TTD4510FT), 96122 (TTD5510FBT). .

• "INSTALLS IN MINUTES: Find convenience and durability with these above ground insulation piercing connectors that install in just minutes to eliminate wire stripping, connecting and taping of split bolts and adding inhibitors."
• "ISOLATED SOLUTION: Offering a corrosion-free connection, each above ground insulation piercing connector is isolated from energized parts and has no contact at any point to an energized part due to the tin-plated copper teeth and high-strength sealant."
• CORRECT TORQUE TIGHTENING: No cable stripping is required when using these connectors that are equipped with a double shear-head bolt and red turbo spacer that allows the tap side to remain open.
• "ABOVE GROUND CONNECTOR: Utilize this above ground insulation piercing connector on energized circuits to eliminate power shutdowns and on overhead services, such as street lighting, ensuring a quality connection without hot spots, loose connections or damaged wires."
• COLLECTION OF COMPREHENSIVE ELECTRICAL TOOLS: Morris Products is proud to feature a variety of electrical tools and applications that range from wire connectors and non-insulated ferrule to nylon cable ties and cable splicers.
