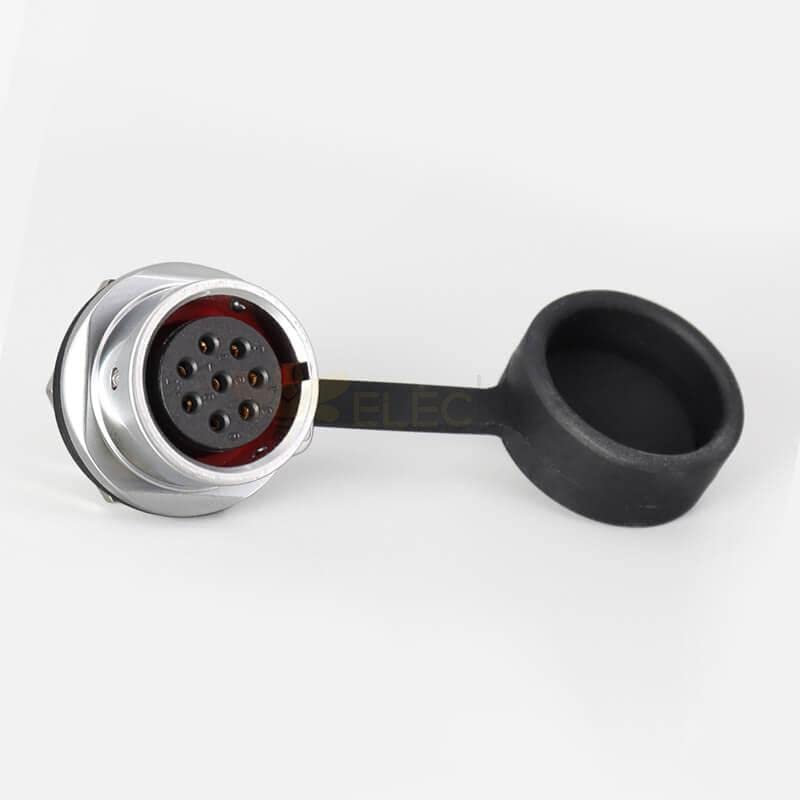

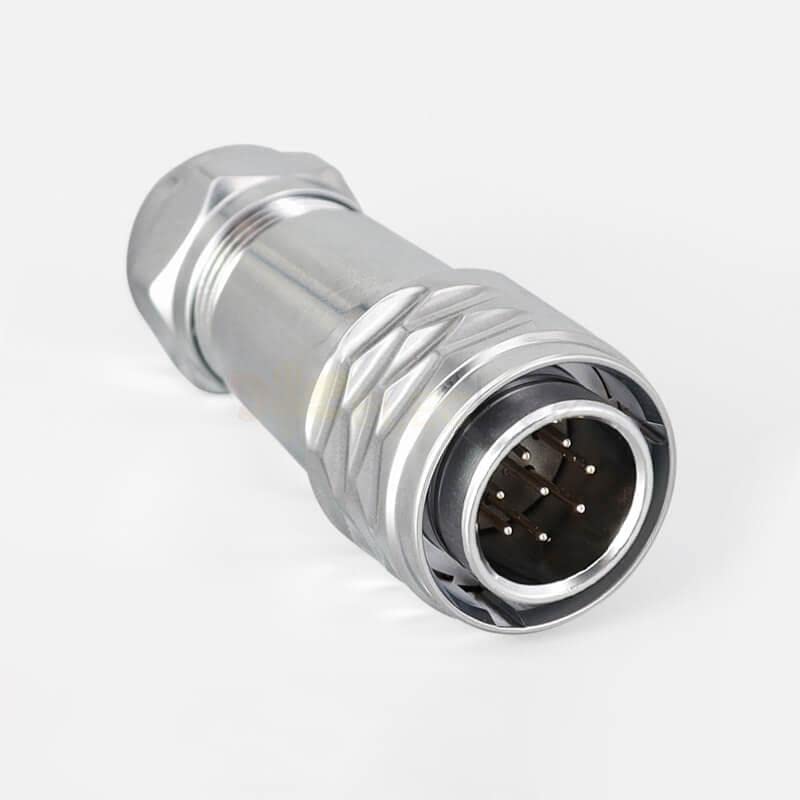

SF20 8 Pin Metal Aviation Industrial Male Plug Female Socket Back-Mount Waterproof Circular Push-Pull Quick

Electrical Characteristics Rated current:25A (2,3,4,5pin） Rated current:15A (6pin） Rated current:10A (7pin） Rated current:5A (8,9,10,12pin） Rated voltage:500V Ø1.00mm Center Contact Resistance≤5 mΩ(Milliohms max.) Ø2.5mm Center Contact Resistance≤1 mΩ(Milliohms max.) Ø1.5mm Center Contact Resistance≤2.5 mΩ(Milliohms max) Ø2.0mm Center Contact Resistance≤2.5 mΩ(Milliohms max) Insultation Resistance ≧2000 mΩ (Milliohms min.) Mechanical Characteristics Coupling: Push-pull Quick Mating Durability: ≧500 cycles Environmental Characteristics Environmental Characteristics:-45℃~+85℃ Material: Body： Copper chrome plating+Copper chrome plating Center Contact Pin： Copper gold plating+Copper gold plating Insulator： PPS+Black

• Sloder, Push-pull quick, Male plug, Female socket , Back mount, Waterproof, 8pin
• Waterproof IP67；Low frequency
• Easy quick connect and disconnect coupling;
• Main Application :used in aviation, navigation, computers, communications, anti-theft devices, transportation, machinery and electronics, etc.
• From the OEM Original Factory, same quality with much better price.
